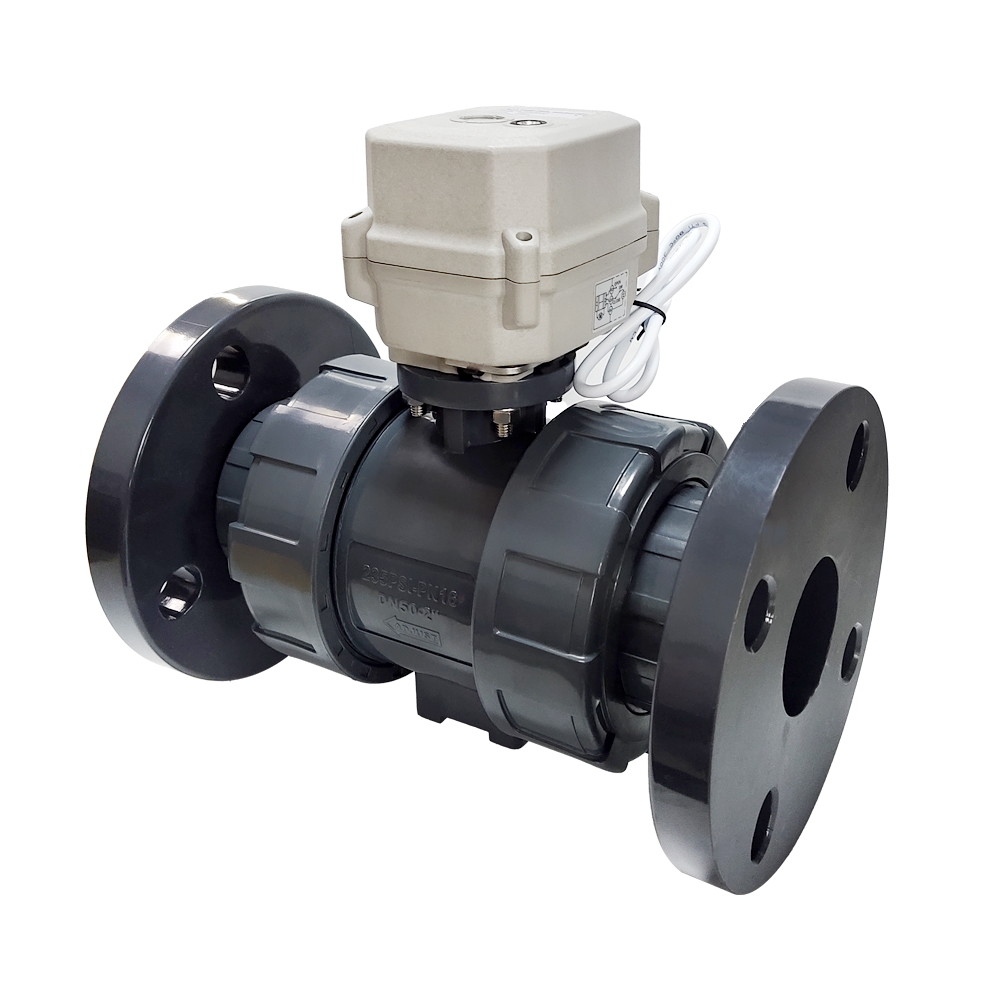

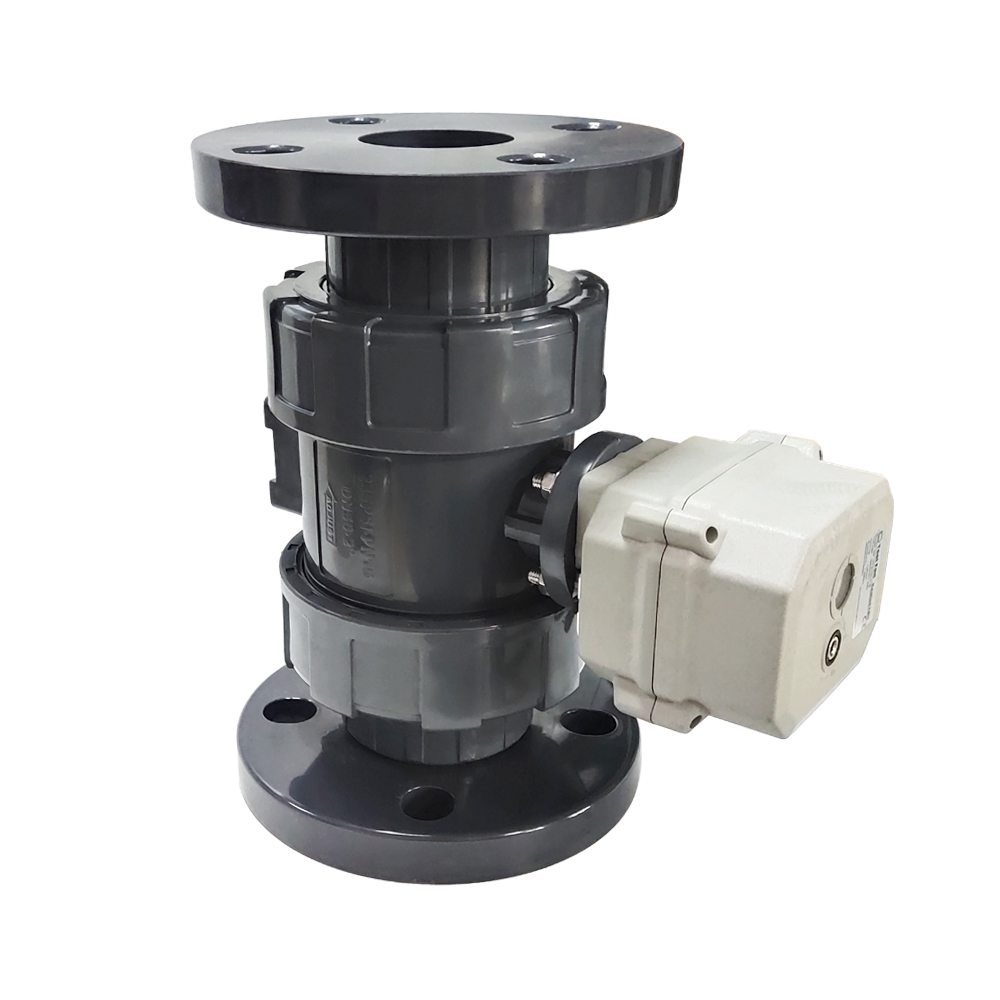

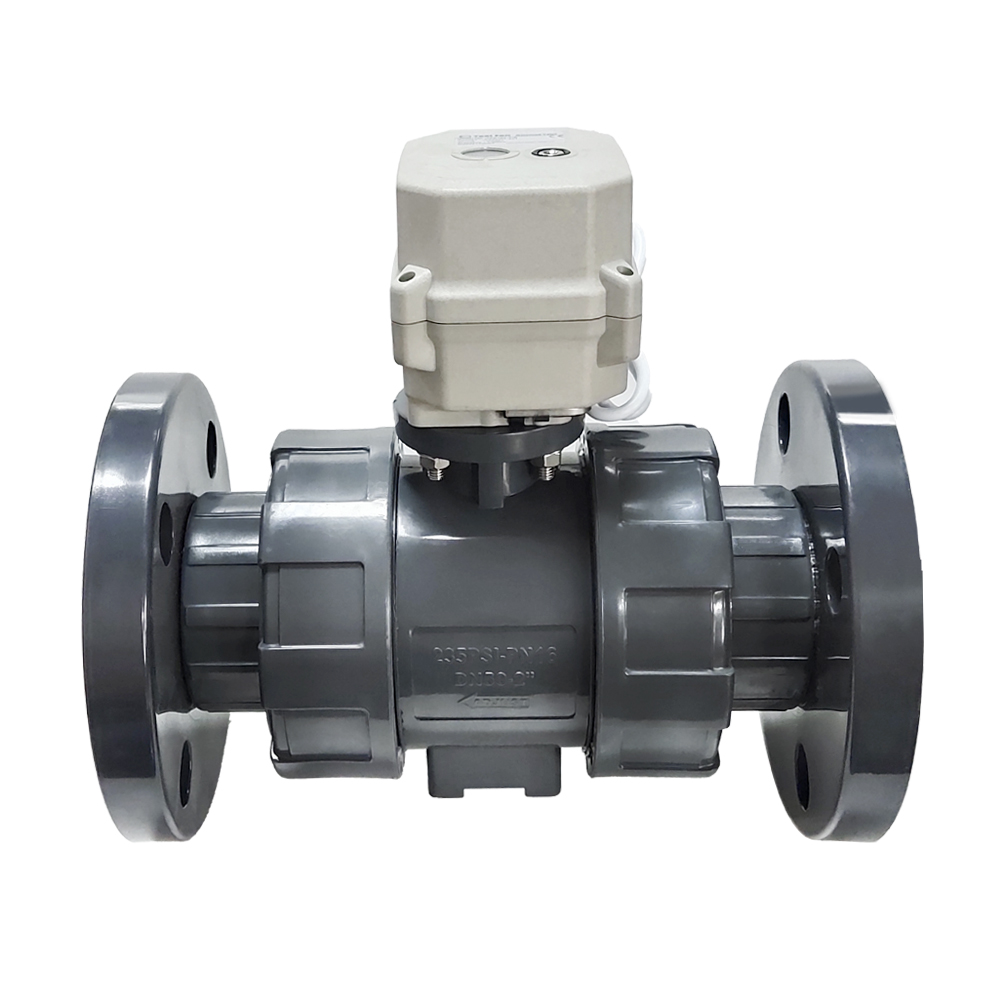

Electric Motorized UPVC 2 Way Ball Valve with Flange Connection Ends 1/2 inch to 2 inches

Flanged connection ends Electric Motorized Ball valve size from 1/2" to 2" with True union connection way UPVC material with electric actuator

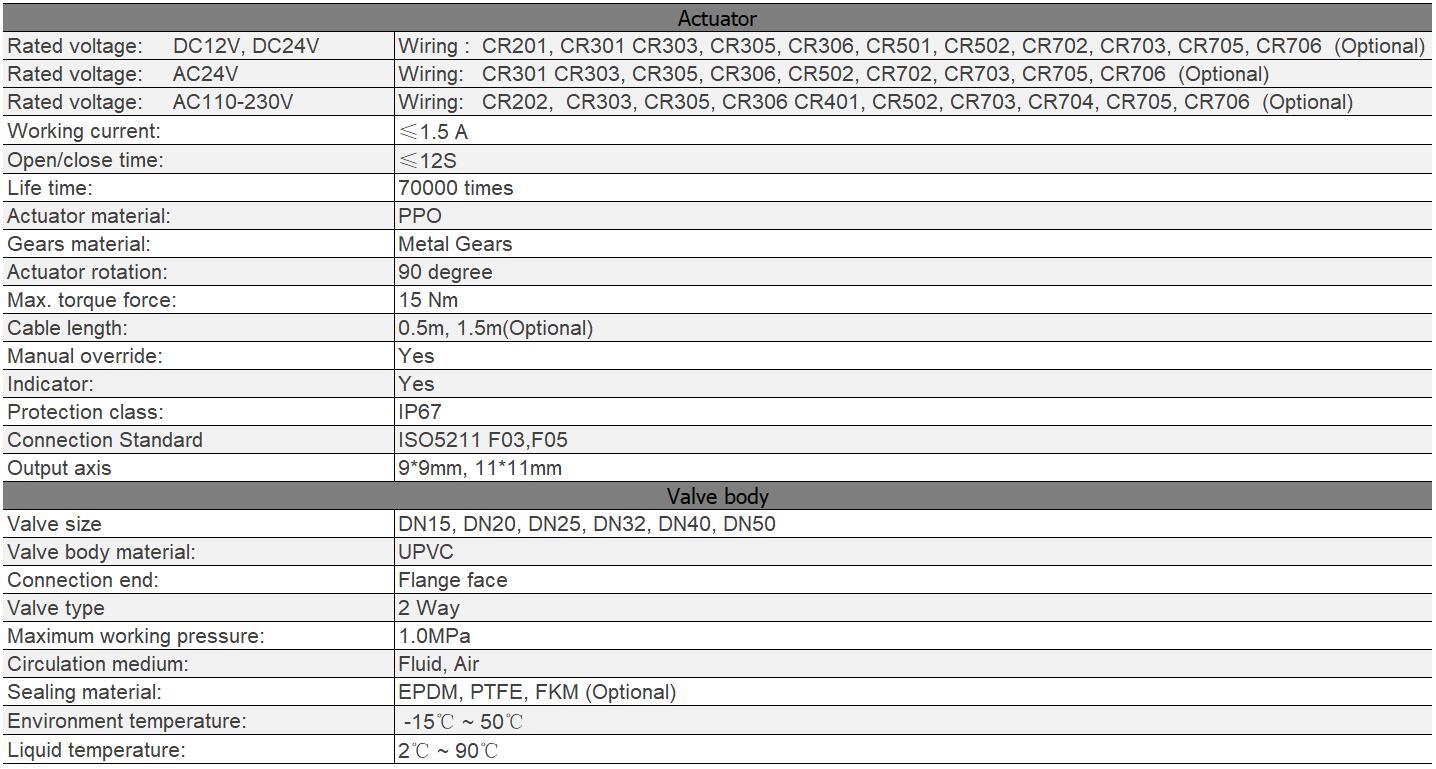

  • Sizes: 1/2" to 2"
  • Material: UPVC
  • Power: DC12V/A/DC24V/110-230V
  • Switching time: 12 Seconds
  • Connection: Flange Connections
  • Torque Force: 15Nm

Tsaifan Electric Valve

Tsaifan Electric Valve

Tsaifan Electric Valve

Tsaifan Electric Valve


Tsaifan Electric Valve

CR2 01 Wiring Diagram (2 wires control)

motorized ball valve

VALVE OPEN: Black wire connect to Positive and Red wire connect to

Negative, valve Open.

VALVE CLOSE: Black wire connects to Negative and Red wire connects to Positive, valve Close.

Remark: When valve fully open/close, power supply to motor will be cutoff automatically by limit switch inside.

Suitable Working Voltage: DC12V,DC24V,AC24V, AC/DC110V-230V.



CR2 02 Wiring Diagram (2 wires control – spring return if power failure)

motorized ball valve

VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, valve Open.

VALVE CLOSE: When Red wire disconnects to power/power failure, valve Close.

Remark: When VALVE fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: DC12V,DC24V,AC24V, AC/DC110V-230V.



CR3 01 Wiring Diagram (3 wires control)

motorized ball valve

VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, valve Open.

VALVE CLOSE: Black wire connects to Negative and Green wire connects to Positive, valve Close.

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: DC12V,DC24V,AC24V, AC/DC110V-230V.


CR3 03 Wiring Diagram (3 wires control)

motorized ball valve

VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire connects to Positive, valve Open.

VALVE CLOSE: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire disconnected, valve Close.

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: DC12V,DC24V,AC24V, AC/DC110V-230V.


CR3 05 Wiring Diagram (3 wires control)

motorized ball valve

VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire connects to Positive, valve Open.

VALVE CLOSE: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire disconnected, valve Close.

Power failure: The Valve CLOSE automatically if power failure.

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: DC12V,DC24V,AC24V, AC/DC110V-230V.



CR3 06 Wiring Diagram (3 wires control)

motorized ball valve

VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire connects to Positive, valve Open.

VALVE CLOSE: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire disconnected, valve Close.

Power failure: The Valve OPEN automatically if power failure.

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: DC12V,DC24V,AC24V, AC/DC110V-230V.


CR4 01 Wiring Diagram (4 wires control)

motorized ball valve

 VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, meanwhile, White and Yellow wire connected, valve Open.

VALVE CLOSE: Black wire connect to Negative and Red wire connect to

Positive, meanwhile, White and Yellow wire disconnected, valve Close.

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: AC/DC110V-230V.



CR5 01 Wiring diagram (with feedback signal)

motorized ball valve

 VALVE OPEN: Black wire connect to Positive and Red wire connect to

negative, valve Open.

VALVE CLOSE: Black wire connects to negative and Red wire connects to Positive, valve Close.

When valve fully open, White and Blue wire get through

When valve fully close, White and Yellow wire get through

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage:  DC12V, DC24V.


CR5 02 Wiring diagram (with feedback signal)

motorized ball valve

VALVE OPEN: Black wire connects to Negative and Red wire connect to Positive, valve Open.

VALVE CLOSE: When black or Red wire disconnect to power/power failure, valve Close automatically.

When valve fully open, White and Blue wire get through

When valve fully close, White and Yellow wire get through

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: DC12V,DC24V,AC24V, AC/DC110V-230V.


CR7 02 Wiring diagram (with feedback signal)

motorized ball valve

VALVE OPEN: Black wire connects to Negative and Red wire connect to Positive, valve Open.

VALVE CLOSE: Black wire connects to Negative and Green wire connects to positive, valve Close.

When valve fully open, Blue and Gray wire get through

When valve fully close, White and Yellow wire get through

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: DC12V,DC24V,AC24V, AC/DC110V-230V.


CR7 03 Wiring diagram (with feedback signal)

motorized ball valve

VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire connects to Positive, valve Open.

VALVE CLOSE: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire disconnected, valve Close.

When valve fully open, Blue and Gray wire get through

When valve fully close, White and Yellow wire get through

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: DC12V,DC24V,AC24V, AC/DC110V-230V.


CR7 04 Wiring diagram (with feedback signal)

motorized ball valve

VALVE OPEN: Black wire connects to Negative and Red wire connect to Positive, meanwhile, White and Yellow wire connected, valve Open.

VALVE CLOSE : Black wire connect to Negative and Red wire connect to Positive, meanwhile White and Yellow wire disconnected valve Close.

When valve fully open, White and Green wire get through

When valve fully close, White and Yellow wire get through

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: AC/DC110V-230V.


CR7 05 Wiring diagram (with feedback signal)

motorized ball valve

VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire connects to Positive, valve Open.

VALVE CLOSE: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire disconnected, valve Close.

Power failure: The Valve CLOSE automatically if power failure.

When valve fully open, Blue and Gray wire get through

When valve fully close, White and Yellow wire get through

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: DC12V,DC24V,AC24V, AC/DC110V-230V.


CR7 06 Wiring diagram (with feedback signal)

motorized ball valve

VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire connects to Positive, valve Open.

VALVE CLOSE: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire disconnected, valve Close.

Power failure: The Valve OPEN automatically if power failure.

When valve fully open, Blue and Gray wire get through

When valve fully close, White and Yellow wire get through

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: DC12V,DC24V,AC24V, AC/DC110V-230V.
