The controller detects the slightest water leakage, turn off the water valve and alerts.
With the controller you get a security both at home and when travelling away.
Automatic Shut off Motorized ball valves |

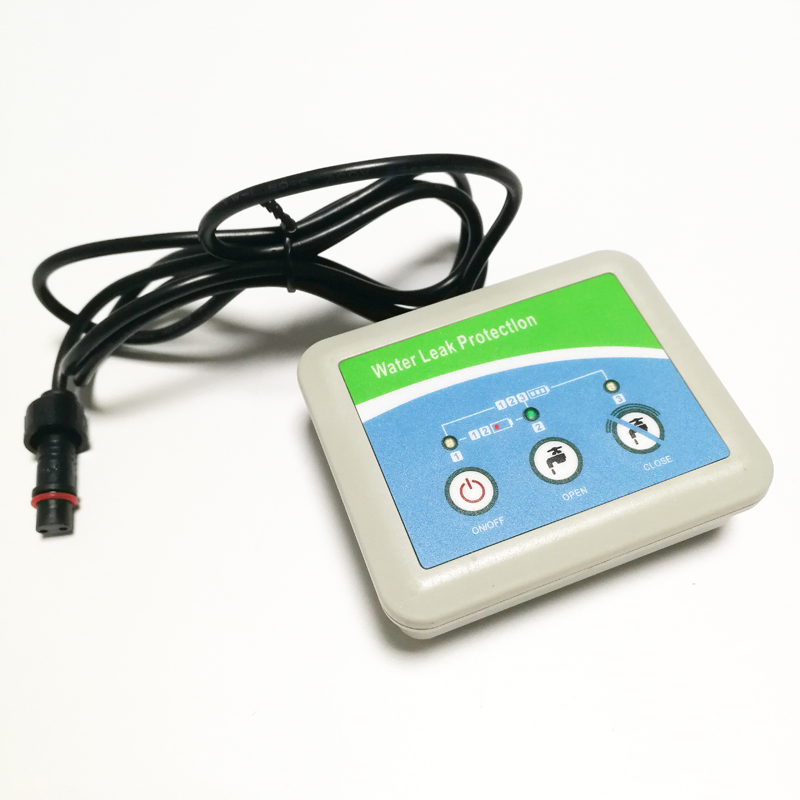

Intelligent controller |

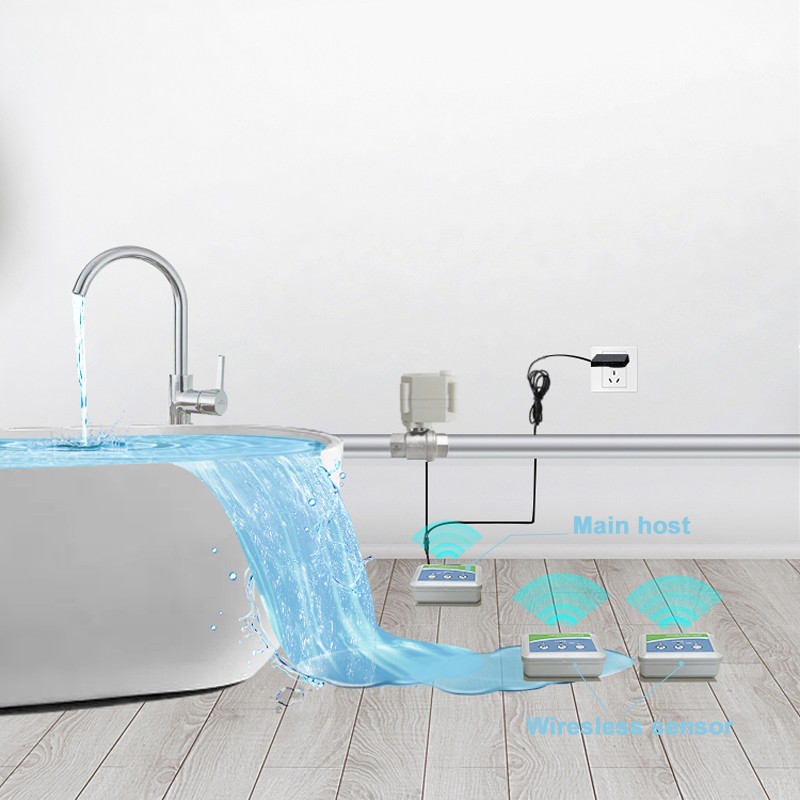

Installation example |
![Tsaifan Electric Valve Tsaifan Electric Valve](http://www.flow-controls.com/upload/file/images/20150619020532.jpg) | ![Tsaifan Electric Valve Tsaifan Electric Valve](../upload/202304/1681801384742857.jpg) |
|

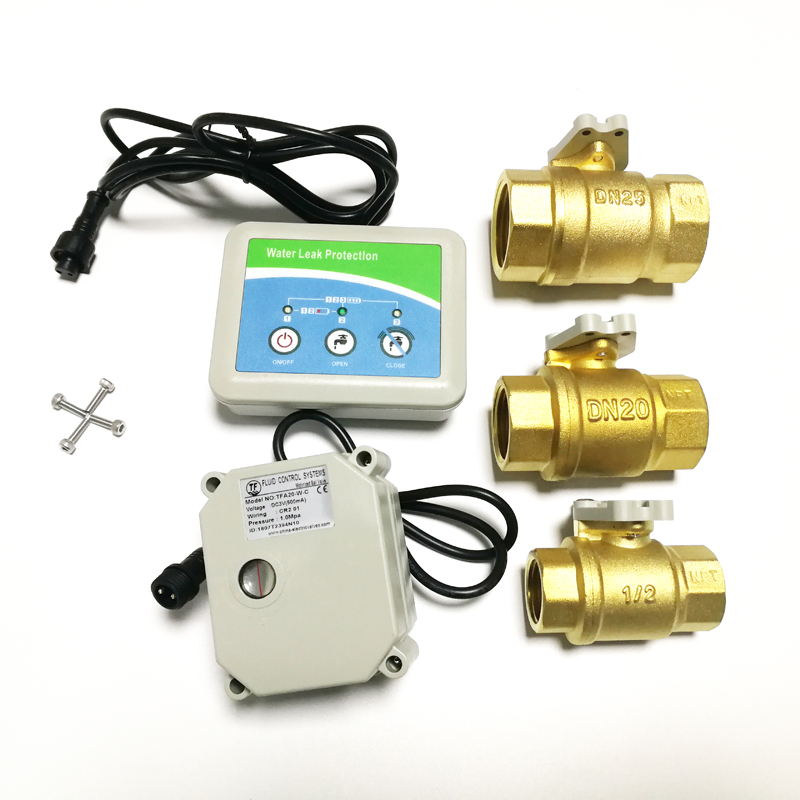

Products include:
Water detector with 1m water proof wires & connector.
1/4", 3/8", 1/2'', 3/4" or 1'' motorized valve(with indicator) with 1m water proof wire & connector.
Functions and Features:
* Valves close automatically when leakage, and alarm.
* Power Supply with 2 AA, 5 batteries.
* Automatically alarm when power is lower, and valve close eight hours later
* Controller panel has three keys ( power key, valve on key , valve off key ) and three indicator lights ( power indicator, on - off indicator)
* Easy to install.
* Suitable for water purifiers, protective faucet, washing machine, filter or water softener and other equipment as leakage protection.
* Sensing controller is fully sealed, moisture-proof design, improve the life of battery and stability of the product .
Technical parameters:
Operating voltage: 3VDC (2 . AA, 5 batteries)
Operating Current: Typically 0.015mA, max 300.0mA
Cable length: 1.0M
Valve Size: 1/4", 3/8", 1/2 ",3/4", 1"
Valve Material: Brass
Valve Thread: BSP or NPT
Ambient temperature: -20 degrees to 80 degrees C
Withstand pressure: 1.0Mpa
Leakage detection: Put the metal face of senser controller down the place most likely leaky places, such as near the water purifier.
