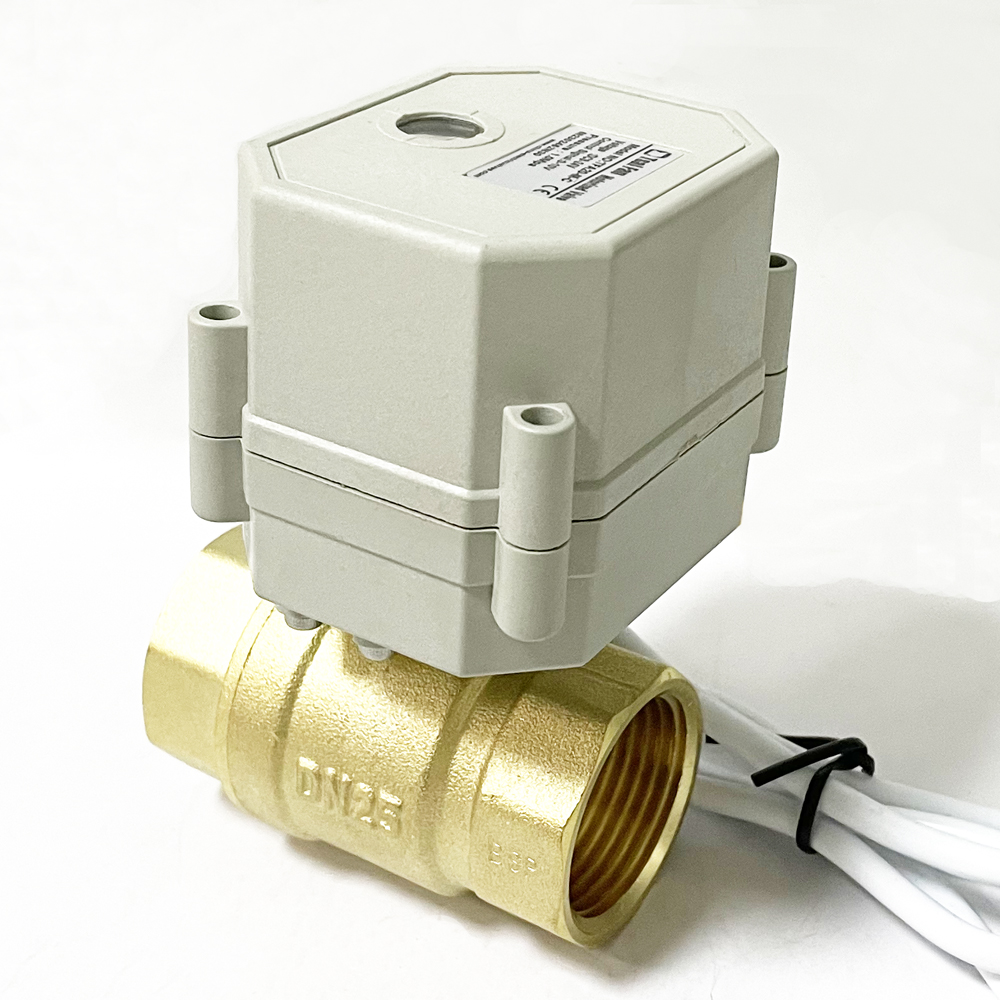

proportional valves, control valves, electric valve, motorized valves for flow control purporse
![Tsaifan Electric Valve Tsaifan Electric Valve](../upload/202303/1679563309139087.jpg)

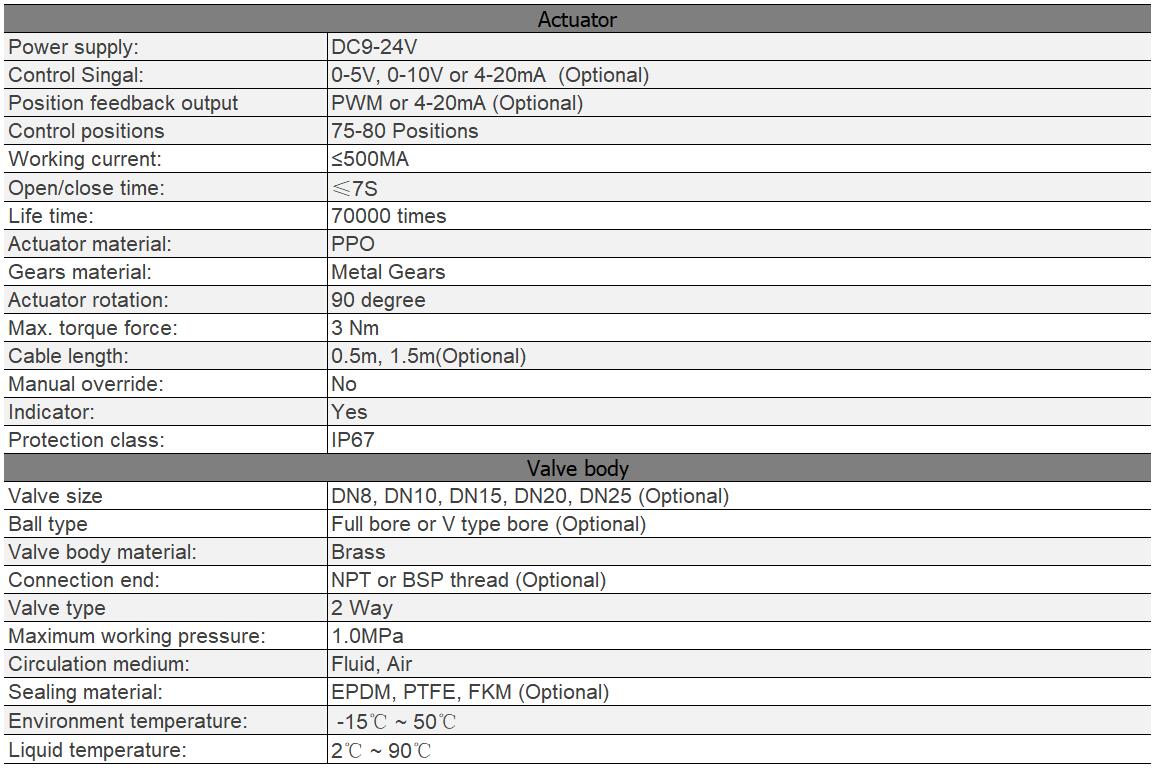

Main components material:
No. | Name | Material | Qty |
1 | Actuator | PPO | 1 |
2 | Body cover | Brass | 1 |
3 | O-ring | EPDM | 2 |
4 | Sealing | PTFE | 2 |
5 | Ball | Brass | 1 |
6 | Steam | Brass | 2 |
7 | O-ring | NBR | 2 |

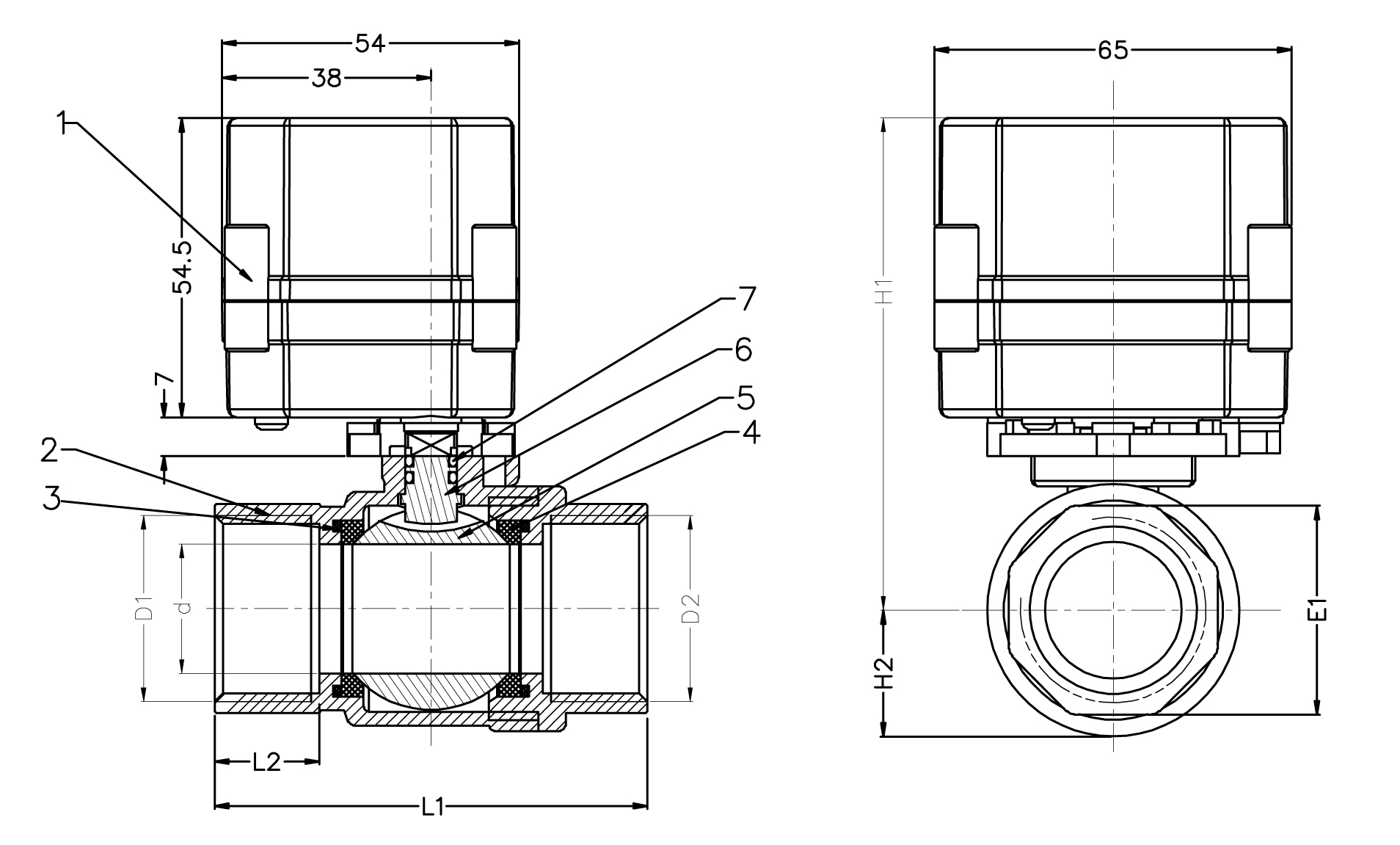

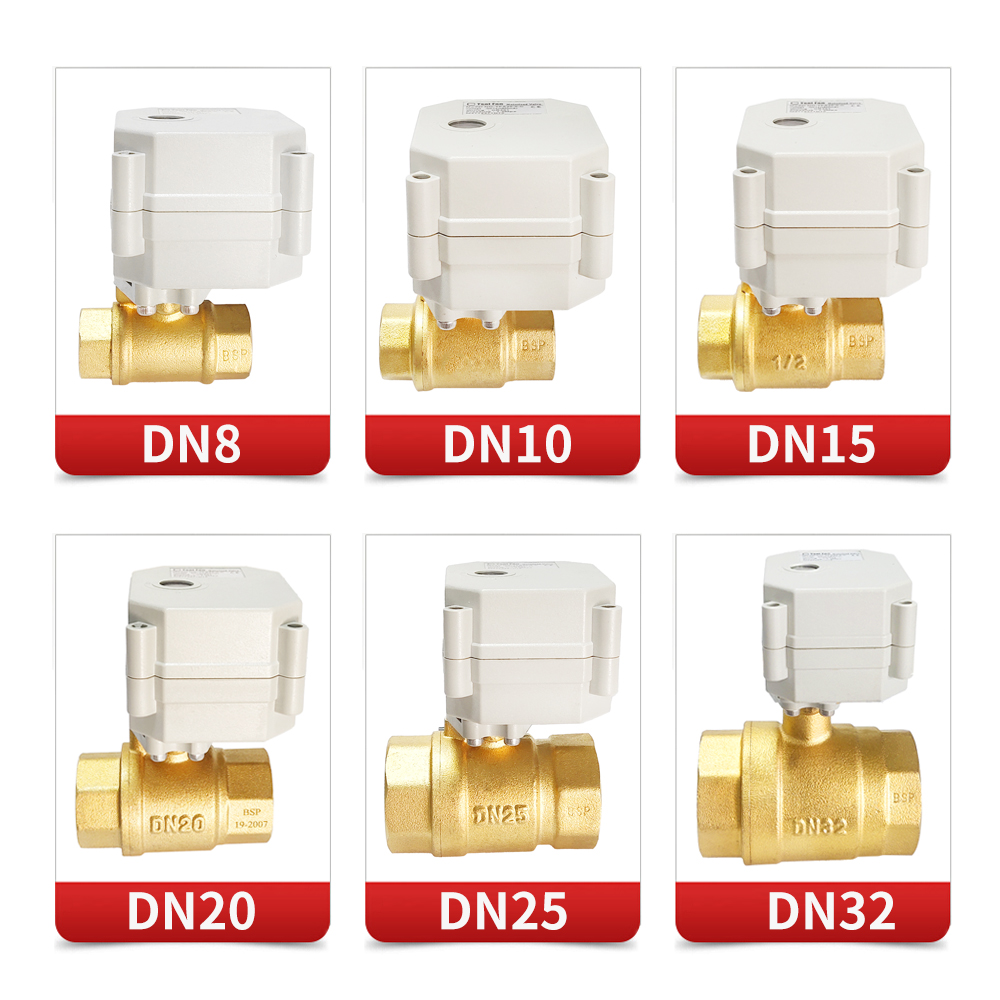

Electric Valve Dimension:
Size (mm) | D1/D2 | d | L1 | L2 | E1 | H1 | H2 |
TF8(1/4”) Electric valve | 1/4” | 8 | 49 | 12 | 20.5 | 80.5 | 12 |
TF10(3/8”) Electric valve | 3/8” | 10 | 49 | 12 | 20.5 | 80.5 | 12 |
TF15(1/2”) Electric valve | 1/2” | 15 | 56 | 13 | 25 | 84 | 16 |
TF20(3/4”) Electric valve | 3/4” | 20 | 66 | 15 | 31 | 87 | 19 |
TF25(1”) Electric valve | 1” | 24 | 71 | 15 | 38 | 89 | 22 |
TF32(1 1/4”) Electric valve | 1 1/4” | 29 | 79 | 20 | 46 | 91 | 25 |

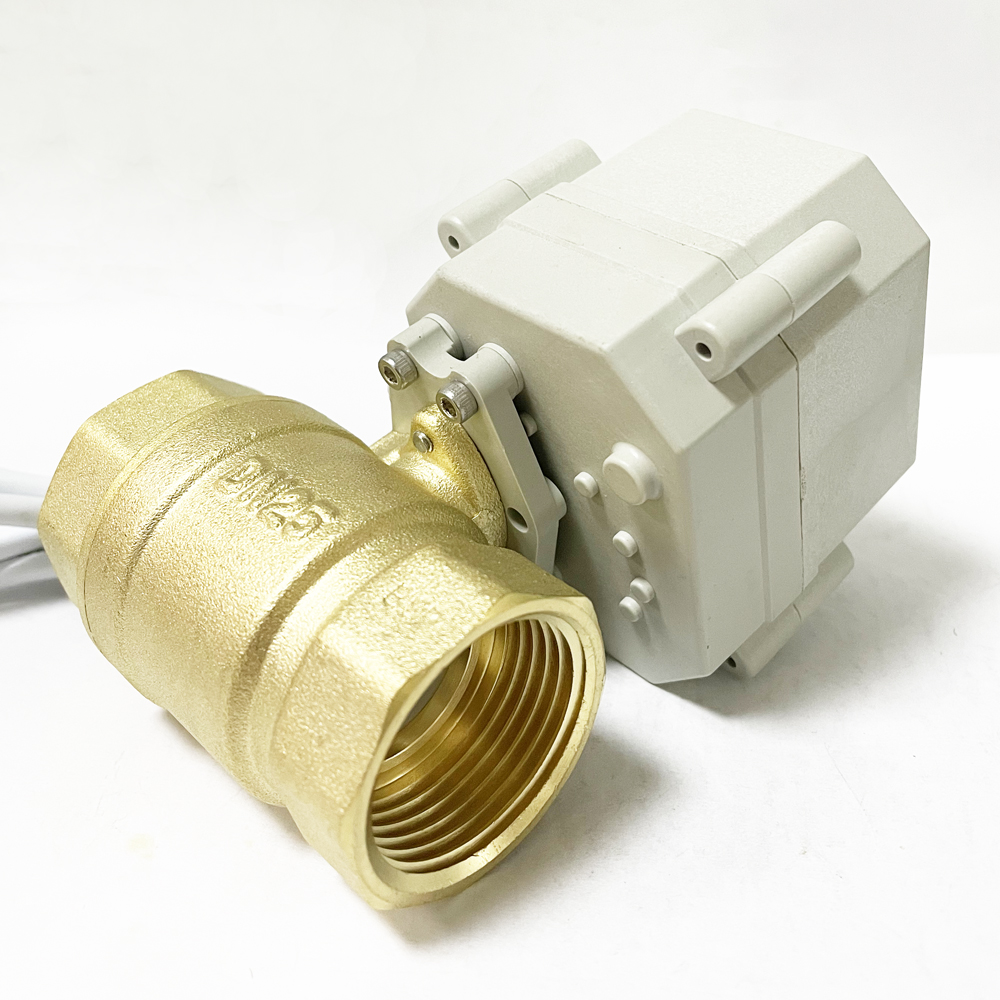

proportional valves, control valves, electric valve, motorized valves for flow control purporse
![Tsaifan Electric Valve Tsaifan Electric Valve](../upload/202303/1679556454818335.jpg)

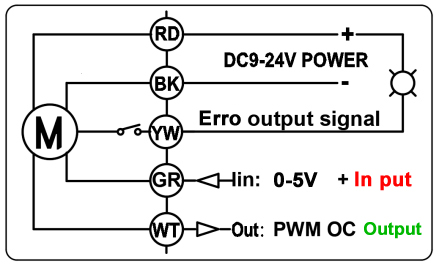

1, RD connect DC9-24V positive
2, BK connect DC9 ~ 24V( 4-20mA-/0-5V-/0-10V) negative
3 GR connect position input /control current +/ control voltage +(4-20mA, 0-5V, 0-10V)
4, YW connect LED light(between 9-24V), when there is error, the light will ON.
5, WT connect position feedback ,OC output PWM signal
◎ PWM frequency:0-100Hz, duty: 5-95%

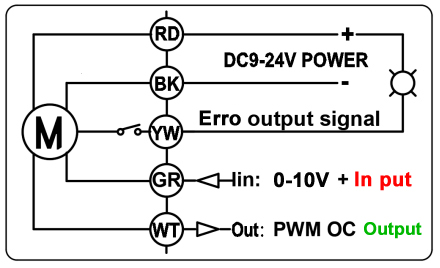

![Tsaifan Electric Valve Tsaifan Electric Valve](../upload/202303/1679556454110854.jpg)
1, RD connect DC9-24V positive
2, BK connect DC9 ~ 24V( 4-20mA-/0-5V-/0-10V) negative
3 GR connect position input /control current +/ control voltage +(4-20mA, 0-5V, 0-10V)
4, YW connect LED light(between 9-24V), when there is error, the light will ON.
5, WT connect position feedback ,OC output PWM signal
◎ PWM frequency:0-100Hz, duty: 5-95%
![Tsaifan Electric Valve Tsaifan Electric Valve](../upload/202303/1679556470129267.jpg)
1, RD connect DC9-24V positive
2, BK connect DC9 ~ 24V( 4-20mA-/0-5V-/0-10V) negative
3 GR connect position input /control current +/ control voltage +(4-20mA, 0-5V, 0-10V)
4, YW connect LED light(between 9-24V), when there is error, the light will ON.
5, WT connect position feedback ,OC output PWM signal
◎ PWM frequency:0-100Hz, duty: 5-95%
proportional valves, control valves, electric valve, motorized valves for flow control purporse
![Tsaifan Electric Valve Tsaifan Electric Valve](../upload/202303/1678850887997046.jpg)

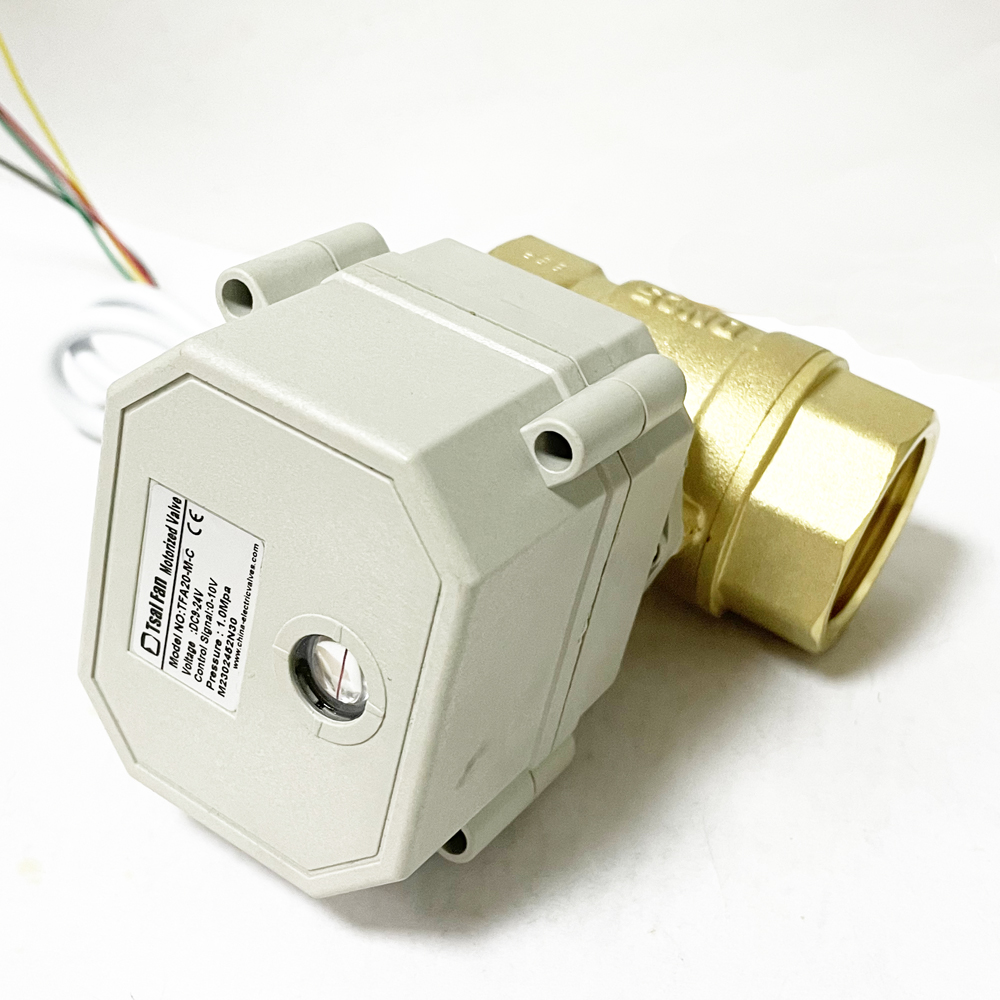

proportional valves, control valves, electric valve, motorized valves for flow control purporse

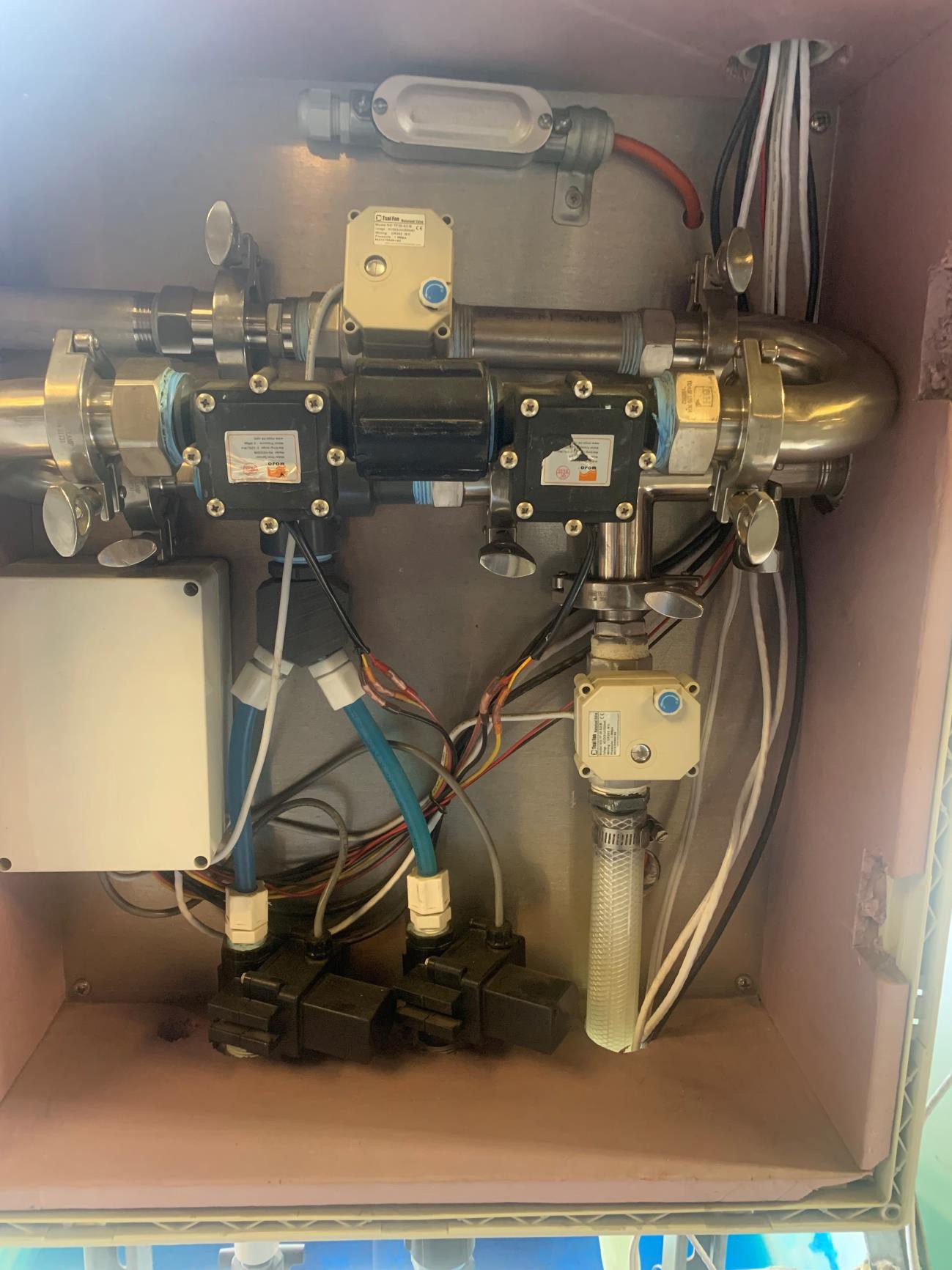

![Tsaifan Electric Valve Tsaifan Electric Valve](../upload/202303/1679563437101580.jpg)
The flow characteristics of electric control valves are: linear characteristics, equal percentage characteristics and parabolic characteristics. Application fields Electric power, chemical industry, metallurgy, environmental protection, water treatment, light industry, building materials and other industrial automation system fields.
