True Union UPVC Electric Ball Valve 2 Way with 10Nm actuator

UPVC True Union 2 Way Electric Ball Valve with 10Nm Actuator with position indicator CE certified, All Metal Gears, IP67 class protection with Glue end, BSP or NPT Thread for HVAC,Air Conditional,Fan Coil,Water Treatment,pipes, boilers, tanks, barrels or similar goods 2 Water treatment,water reclying,water purification

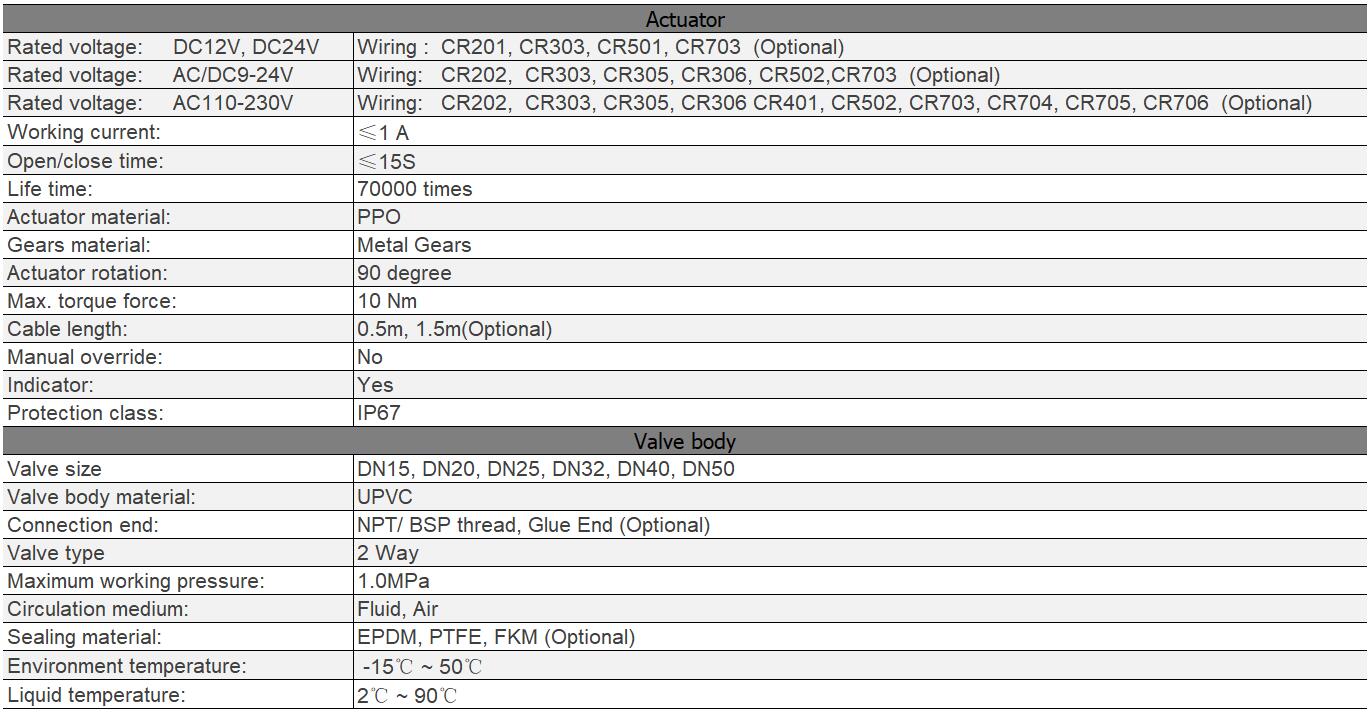

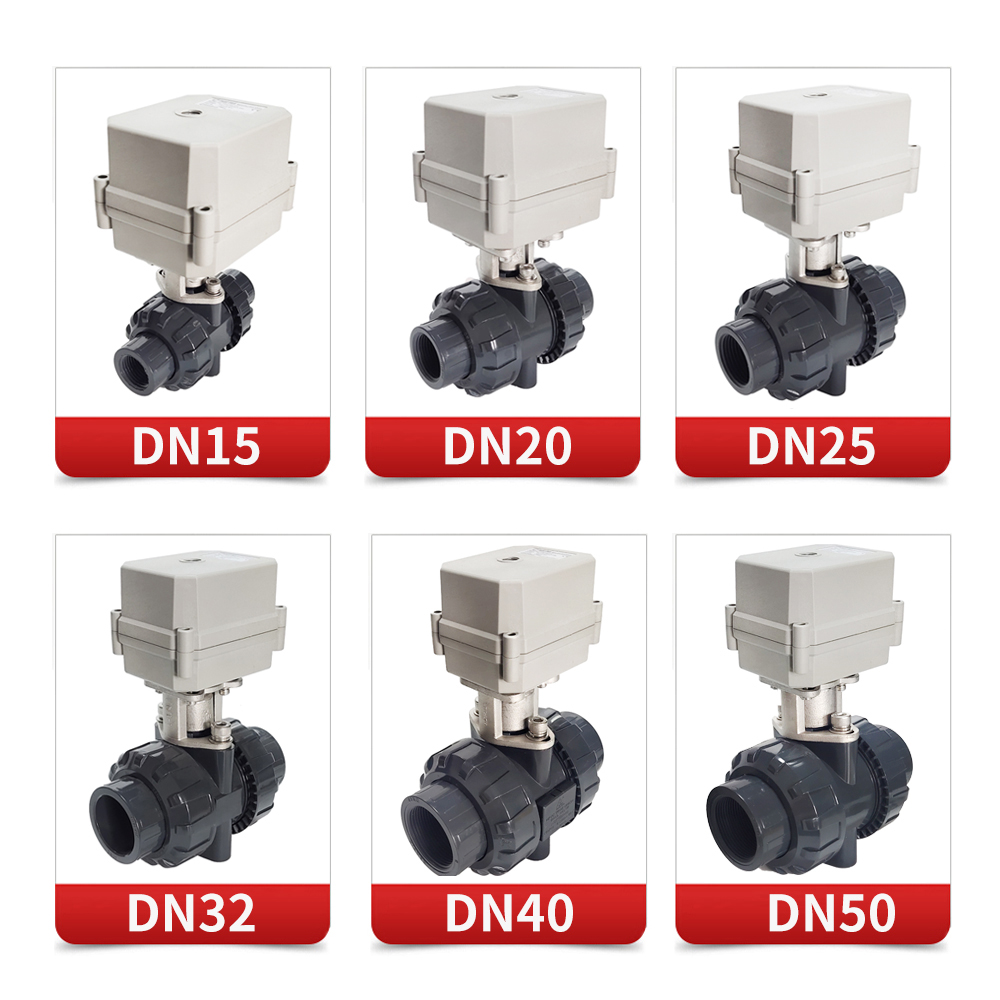

  • Size: DN15 - DN50
  • Material: UPVC
  • Power: DC12V/DC24V/9-24V/110-230V
  • Switching time: 15 Seconds
  • Torque force: 10Nm
  • Actuator type: Indicator only
  • Valve Connection: BSP/NPT/Glue End

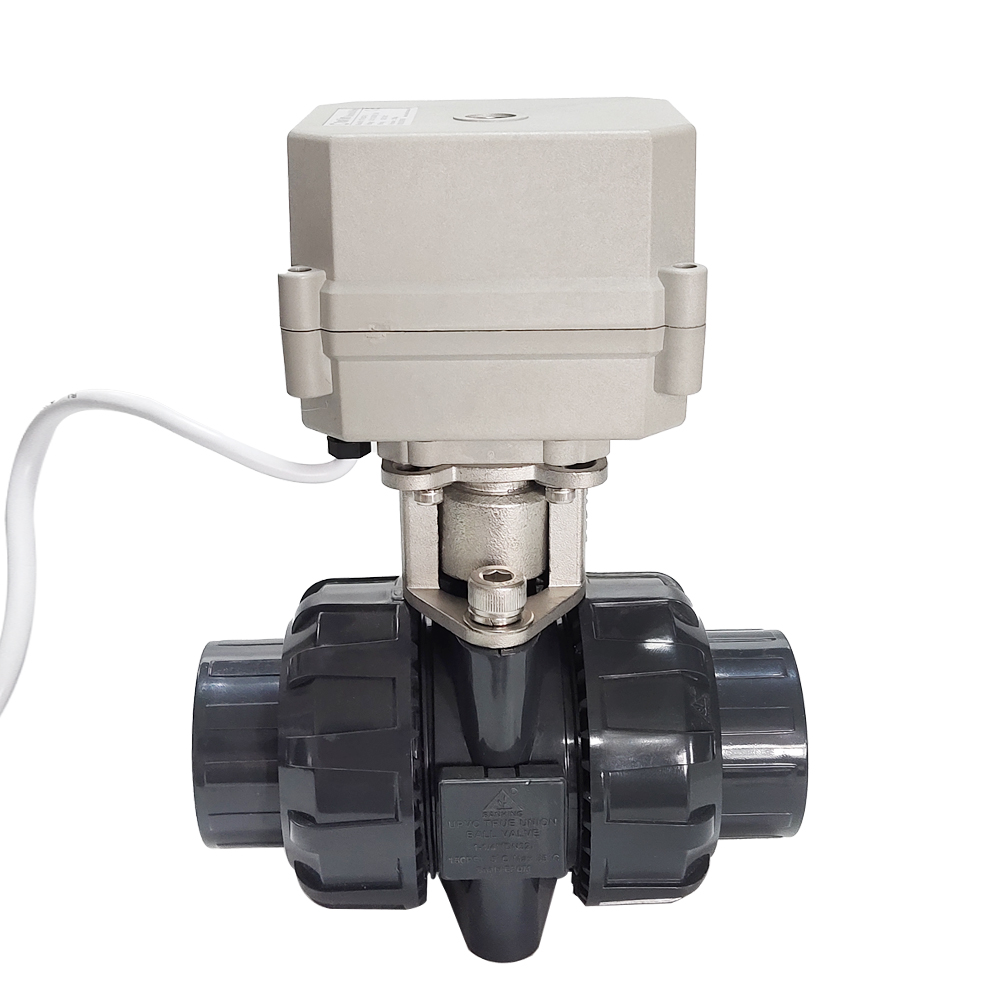

Tsaifan Electric Valve

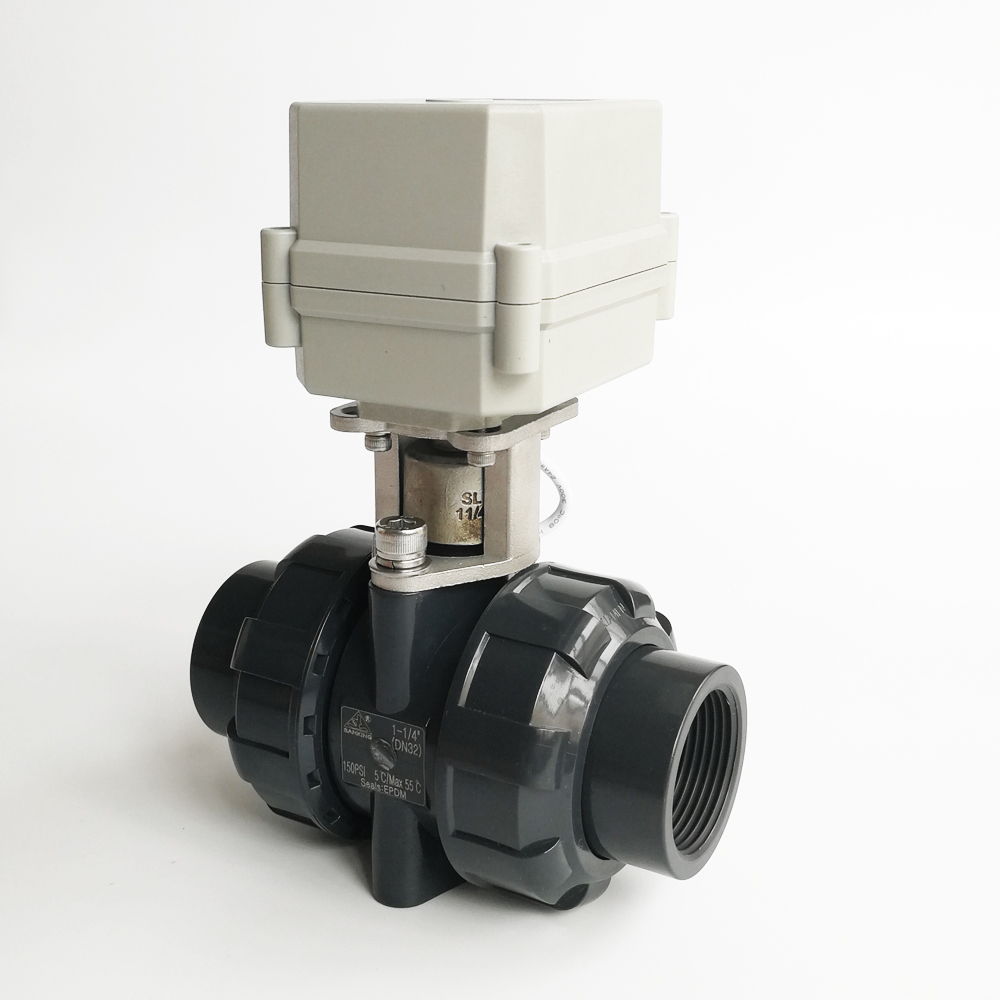

Tsaifan Electric Valve


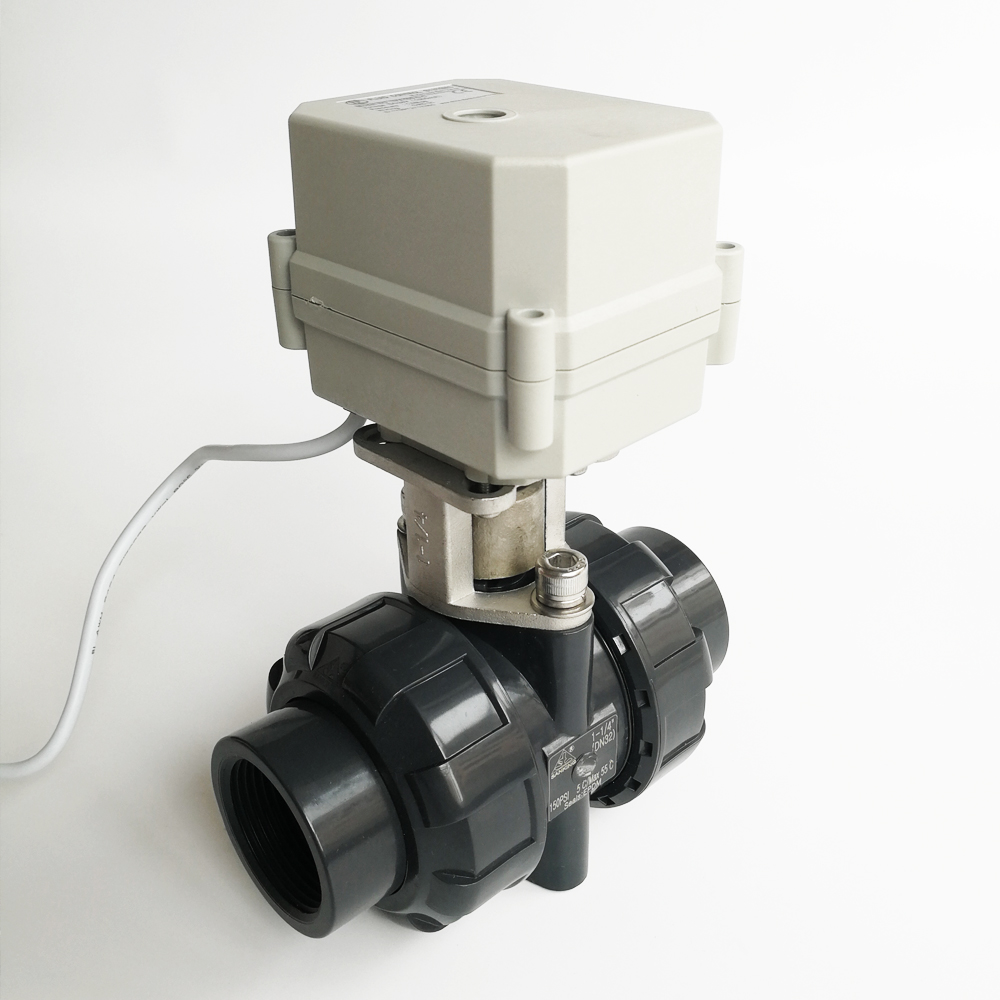

Tsaifan Electric Valve

Main components material:

No.

Name

Material

Qty

1

O-ring

NBR

2

2

Sealing

PTFE

2

3

Valve body

PVC-U

1

4

Ball

PVC-U

1

5

O-ring

NBR

2

6

Bonnet

PVC-U

2

7

O-ring

NBR

2

8

Gland

PVC-U

2

9

Socket

PVC-U

2

10

O-ring

NBR

2

11

Stem

PVC-U

1

12

Coupling

SS304

1

13

Holder

SS304

1

14

Actuator

PPO

1

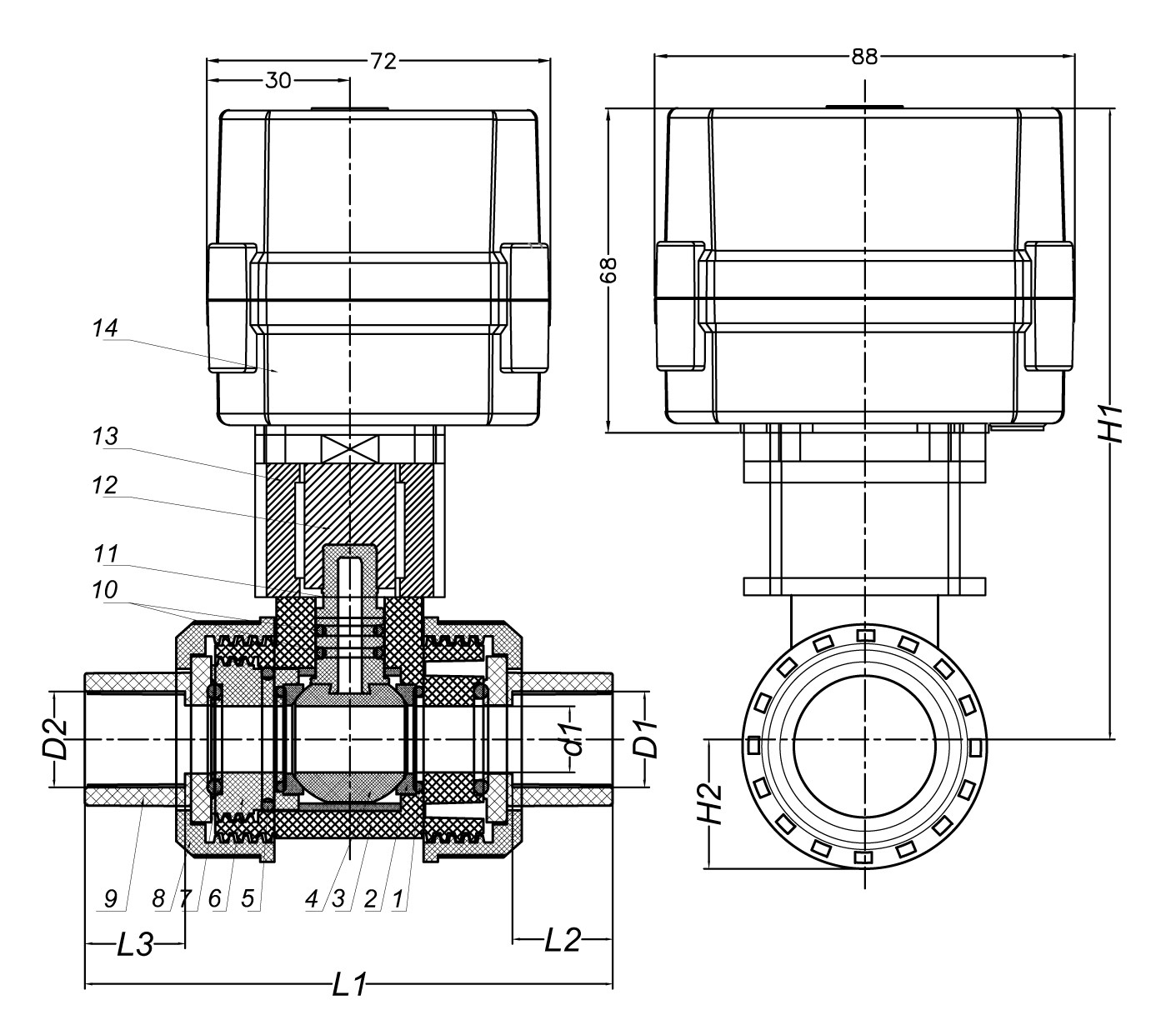

Electric Valve Dimension:

Size (mm)

D1/D2

d1

L1

L2/L3

H1

H2

TF15(1/2”) Electric valve

1/2”

15

104.8

22.3

132

27

TF20(3/4”) Electric valve

3/4”

20

113

25.5

137

32

TF25(1”) Electric valve

1”

25

127

28.6

149

37

TF32(11/4”) Electric valve

11/4”

32

142

32

159

42

TF40(11/2”) Electric valve

11/2”

40

157

35

166

50

TF50(2”)Electric valve

2”

50

174

36

185

59





CR2 01 Wiring Diagram (2 wires control)

motorized ball valve

VALVE OPEN: Black wire connect to Positive and Red wire connect to

Negative, valve Open.

VALVE CLOSE: Black wire connects to Negative and Red wire connects to Positive, valve Close.

Remark: When valve fully open/close, power supply to motor will be cutoff automatically by limit switch inside.

Suitable Working Voltage: DC12V/DC24V.




CR2 02 Wiring Diagram (2 wires control – spring return if power failure)

motorized ball valve

VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, valve Open.

VALVE CLOSE: When Red wire disconnects to power/power failure, valve Close.

Remark: When VALVE fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: AC/DC9-24V, AC/DC110V-230V.




CR3 01 Wiring Diagram (3 wires control)

motorized ball valve

VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, valve Open.

VALVE CLOSE: Black wire connects to Negative and Green wire connects to Positive, valve Close.

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: DC12V, DC24V.


CR3 03 Wiring Diagram (3 wires control)

motorized ball valve

VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire connects to Positive, valve Open.

VALVE CLOSE: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire disconnected, valve Close.

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: AC/DC9-24V, AC110-230V.


CR3 04 Wiring Diagram (3 wires control)

motorized ball valve

VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, valve Open.

VALVE CLOSE: Black wire connects to Negative and Green wire connects to Positive, valve Close.

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage:  DC12V, DC24V.


CR3 05 Wiring Diagram (3 wires control)

motorized ball valve

VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire connects to Positive, valve Open.

VALVE CLOSE: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire disconnected, valve Close.

Power failure: The Valve CLOSE automatically if power failure.

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: AC/DC9-24V, AC/DC110V-230V.



CR3 06 Wiring Diagram (3 wires control)

motorized ball valve

VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire connects to Positive, valve Open.

VALVE CLOSE: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire disconnected, valve Close.

Power failure: The Valve OPEN automatically if power failure.

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: AC/DC9-24V, AC/DC110V-230V.



CR4 01 Wiring Diagram (4 wires control)

motorized ball valve

 VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, meanwhile, White and Yellow wire connected, valve Open.

VALVE CLOSE: Black wire connect to Negative and Red wire connect to

Positive, meanwhile, White and Yellow wire disconnected, valve Close.

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: AC/DC110V-230V.



CR5 01 Wiring diagram (with feedback signal)

motorized ball valve

 VALVE OPEN: Black wire connect to Positive and Red wire connect to

negative, valve Open.

VALVE CLOSE: Black wire connects to negative and Red wire connects to Positive, valve Close.

When valve fully open, White and Blue wire get through

When valve fully close, White and Yellow wire get through

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage:  DC12V, DC24V.


CR5 02 Wiring diagram (with feedback signal)

motorized ball valve

VALVE OPEN: Black wire connects to Negative and Red wire connect to Positive, valve Open.

VALVE CLOSE: When black or Red wire disconnect to power/power failure, valve Close automatically.

When valve fully open, White and Blue wire get through

When valve fully close, White and Yellow wire get through

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: AC/DC9-24V, AC/DC110V-230V.


CR7 02 Wiring diagram (with feedback signal)

motorized ball valve

VALVE OPEN: Black wire connects to Negative and Red wire connect to Positive, valve Open.

VALVE CLOSE: Black wire connects to Negative and Green wire connects to positive, valve Close.

When valve fully open, Blue and Gray wire get through

When valve fully close, White and Yellow wire get through

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: DC12V, DC24V.



CR7 03 Wiring diagram (with feedback signal)

motorized ball valve

VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire connects to Positive, valve Open.

VALVE CLOSE: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire disconnected, valve Close.

When valve fully open, Blue and Gray wire get through

When valve fully close, White and Yellow wire get through

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: AC/DC9-24V, AC110-230V.


CR7 04 Wiring diagram (with feedback signal)

motorized ball valve

VALVE OPEN: Black wire connects to Negative and Red wire connect to Positive, meanwhile, White and Yellow wire connected, valve Open.

VALVE CLOSE : Black wire connect to Negative and Red wire connect to Positive, meanwhile White and Yellow wire disconnected valve Close.

When valve fully open, White and Green wire get through

When valve fully close, White and Yellow wire get through

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: AC/DC110V-230V.


CR7 05 Wiring diagram (with feedback signal)

motorized ball valve

VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire connects to Positive, valve Open.

VALVE CLOSE: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire disconnected, valve Close.

Power failure: The Valve CLOSE automatically if power failure.

When valve fully open, Blue and Gray wire get through

When valve fully close, White and Yellow wire get through

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: AC/DC9-24V, AC/DC110V-230V.



CR7 06 Wiring diagram (with feedback signal)

motorized ball valve

VALVE OPEN: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire connects to Positive, valve Open.

VALVE CLOSE: Black wire connect to Negative and Red wire connect to

Positive, meanwhile Green wire disconnected, valve Close.

Power failure: The Valve OPEN automatically if power failure.

When valve fully open, Blue and Gray wire get through

When valve fully close, White and Yellow wire get through

Remark: When valve fully open/close, power supply to motor will be cut off automatically by limit switch inside.

Suitable Working Voltage: AC/DC9-24V, AC/DC110V-230V.



Tsaifan Electric ValveTsai fan Electric Valves wiring diagram.pdf


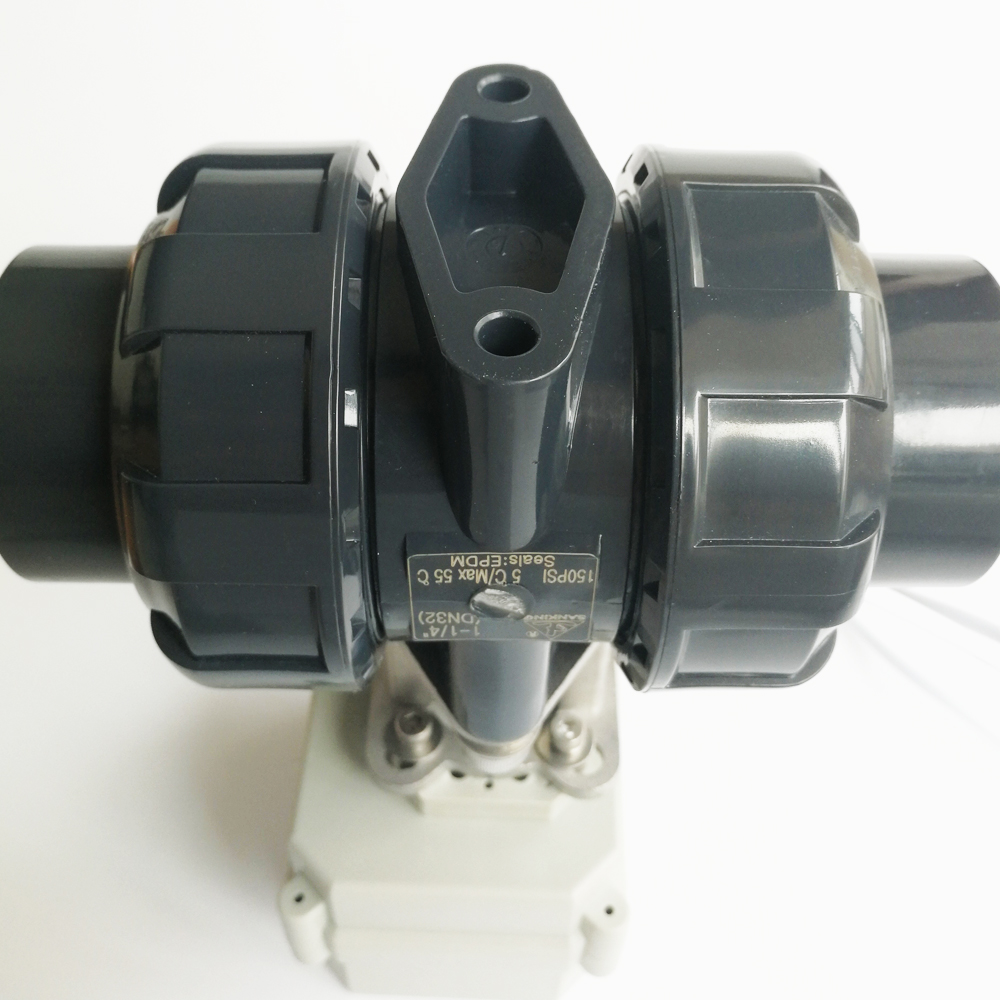

Tsaifan Electric Valve


Tsaifan Electric Valve

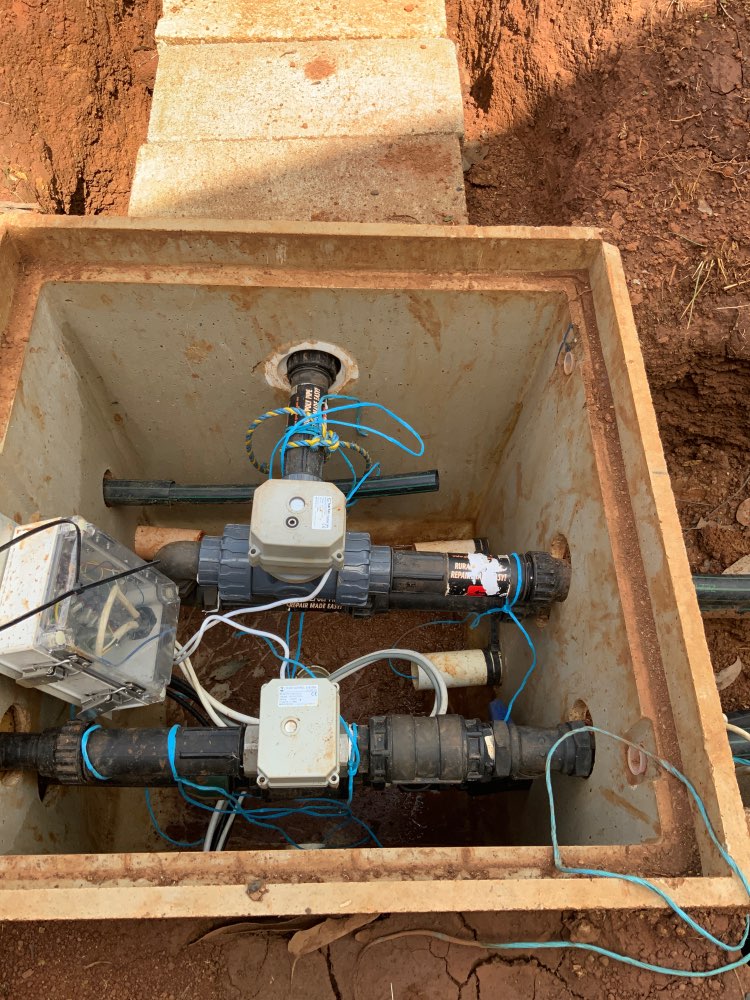

Application:

1. HVAC systems.

2. Water treatment.

3. Chemical process.

4. IC card water meters, heat energy meters, solar instrument.

5. The central air conditioning fan coil, fire sprinkler

3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.

4. Agriculture Irrigation equipment

5. Drinking water equipment, Water heater, washing machine, AHW etc.
