Output axis specification

Female octagonal 9*9 or 11*11

Maximum working pressure

1.0MPa

Rated voltage

 AC24V , DC12-24V, AC110-230V

Wiring diagram

 CR202;CR303;CR306;CR502;CR703;CR706      (Optional)

Life time

70000 times（testing pressure is 0.4MPa, medium is water）

Actuator material

Engineering Plastics PPO

Torque force

15 N.m

Cable Length

0.5m

Environment temperature

-15～60 centigrade

Liquid temperature

2～90 centigrade

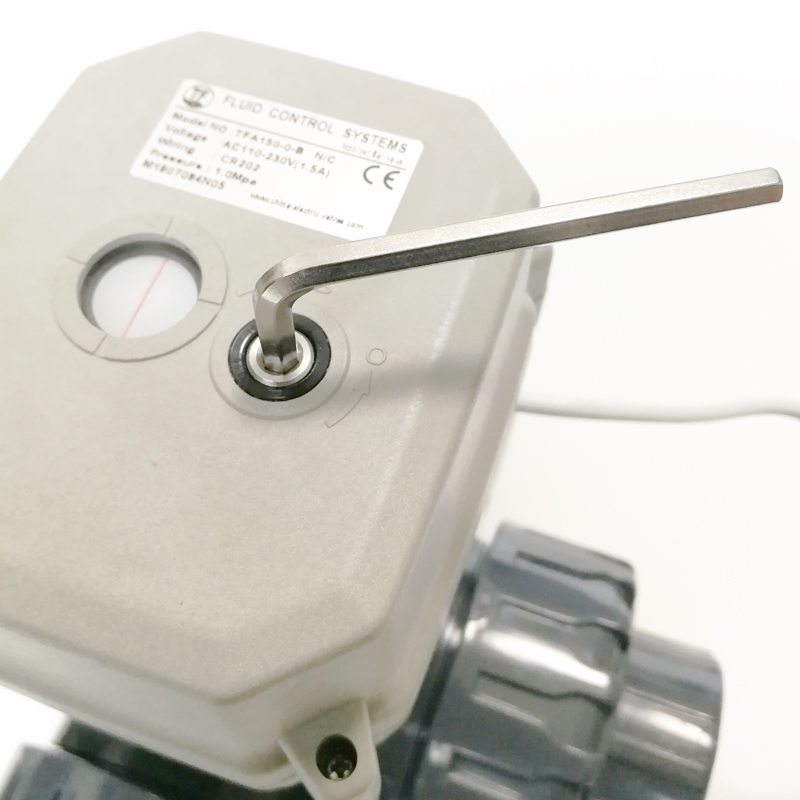

Manual operation

Yes

Open/close indicator

Yes

Protection class

IP67

Company quality management

ISO 9001:2015
