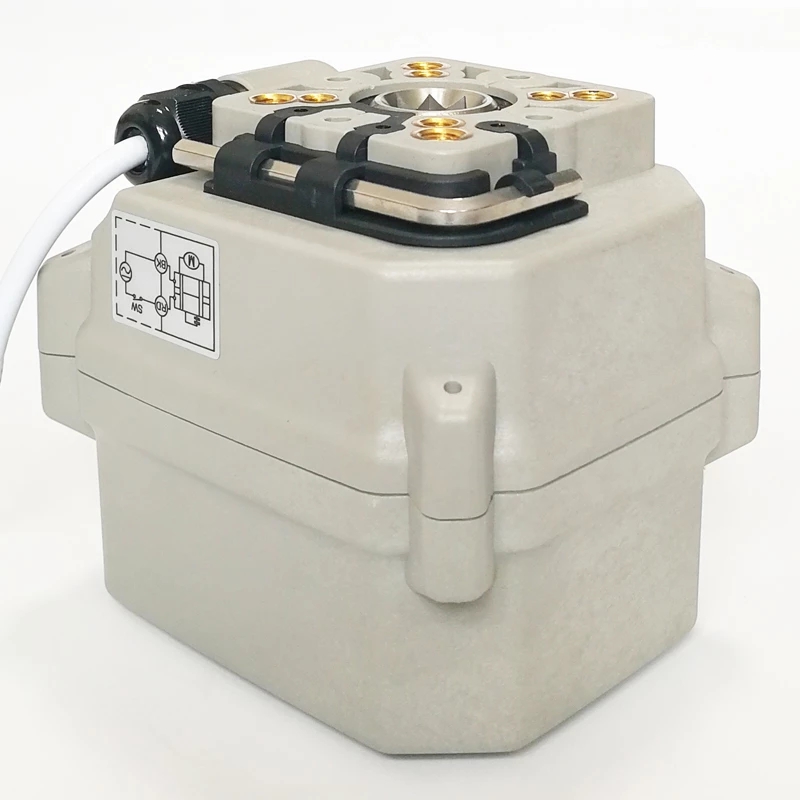

DC12-24V Electric valve actuator with indicator and manual override used for valve from DN15 to DN50, all metal gear valve drive

Electronic Parameters Connection standardISO5211 F03、F05Output axis specificationFemale octagonal 9*9 or 11*11Maximum working pressure1.0MPaRated voltageAC24V , DC12-24V, AC110-230V (Optional )Wirin

Electronic Parameters



Connection standard

ISO5211 F03、F05

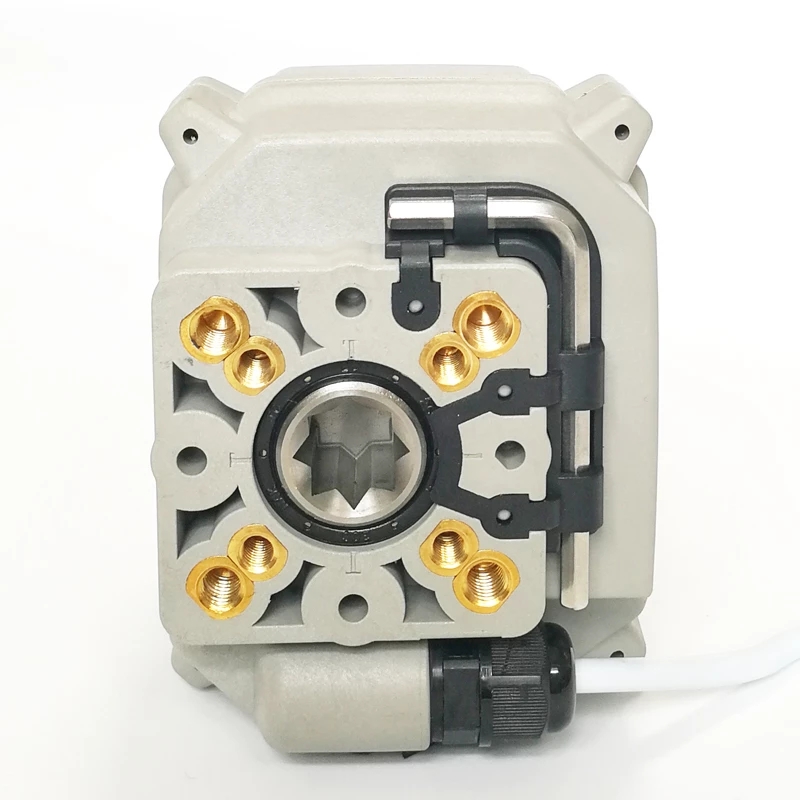

Output axis specification

Female octagonal 9*9 or 11*11

Maximum working pressure

1.0MPa

Rated voltage

AC24V , DC12-24V, AC110-230V   (Optional )

Wiring diagram

CR201;CR202;CR301;CR303;CR306;CR501;CR502;CR702;CR703;CR706                                                 (Optional)

Life time

70000 times(testing pressure is 0.4MPa, medium is water)

Actuator material

Engineering Plastics PPO

Torque force

15 N.m

Cable Length

0.5m

Environment temperature

-15~60 centigrade

Liquid temperature

2~90 centigrade

Manual operation

Yes

Open/close indicator

Yes

Protection class

IP67

Company quality management

ISO 9001:2015
