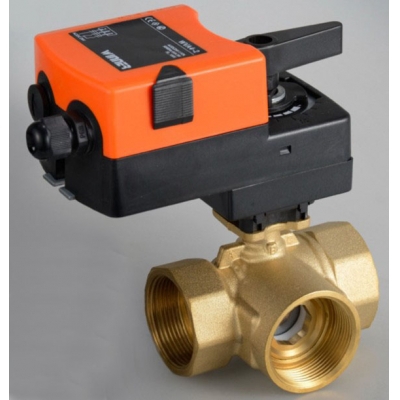

Product name:  3-Way 2'' brass 2 way proprotion valve, AC/DC24V 4-20mA / 0-10V modulating valve

Valve Boday:

Medium: cold/hot water, with 50% glycol

Temperature of medium: 2°C...90°C

Rated pressure: PN20

Pipe connector: internal thread

Ambient temp. range: −5…+60°C；0…90%RH    Size:2’’

Valve type: 3-way

Flow characteristic: equal percentage

Material:

Valve body: forged brass, Hpb59-1

Seal: ball: EPDM+PTFE

Ball:  brass

stem: EPDM

Valve connector: PC

Valve Spindle： aluminum alloy

Actuator:

TFV4-304   24VAC/DC±15%, proportional (0(2)-10VDC)

TFV4-306   24VAC/DC±15%, proportional (0(2)-10VDC/0(4)-20Ma)

TFV4-310   24VAC/DC±15%, proportional (0(2)-10VDC/0(4)-20Ma)

Output torque: 4N.m, 6N.m and 10N.m      Angle of rotation: 90°

Manual handle   Automatic overload protection system

Manual selection of ball rotation direction: C.W. /C.C.W, factory setting is C.W.

Protect rank: IP54        Operation time: 50S-120S

Wiring Connection:

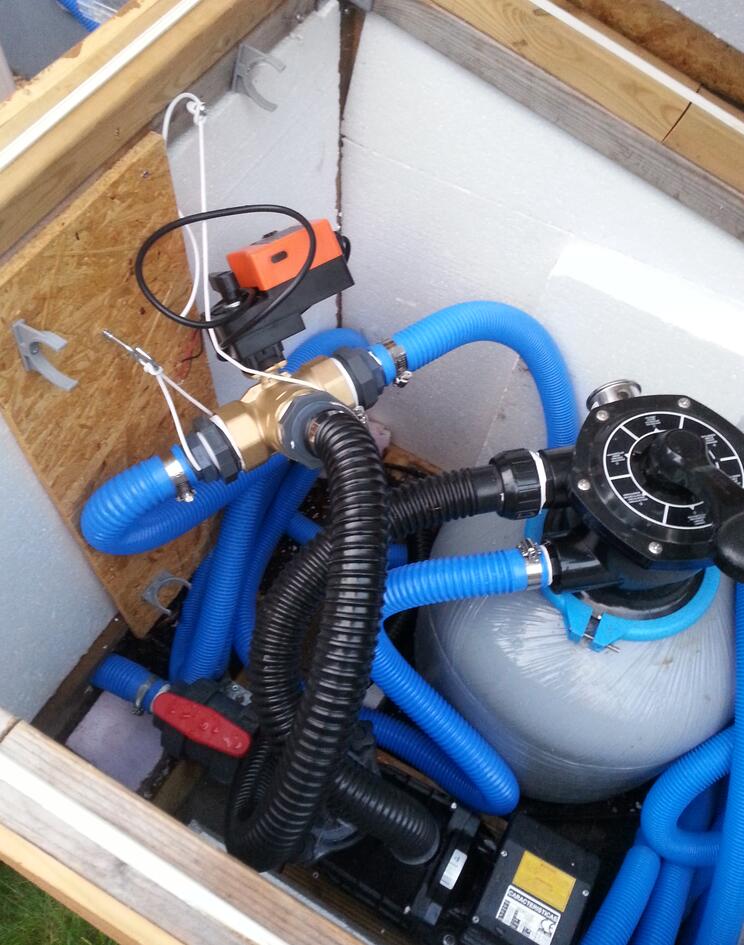

Installation:

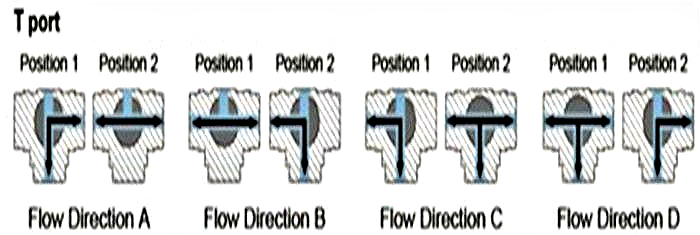

Flow direction Plan

Application:

HVAC system

Heating system

Water treatment system

Industrial equipments
